Surface Applied ADA Systems

Surface Applied ADA Systems

The most trusted truncated dome tactile pavers solution in the world.

  • For use in Retrofit applications
  • Large perimeter beveled edges for smooth transition
  • Secured with color matched fasteners and structural adhesive
  • Surface applied tiles are 1/8" thick with beveled edges
  • Standard sizes: 24" x 36", 24" x 48", 24" x 60", 36" x 48" and 36" x 60"

Surfaced Applied Tactile, available in both Rectangular and Radius, is made of a colorfast and UV stable homogenous glass and carbon composite with fiberglass truncated domes for enhanced durability. The Surface Applied Tactile is used to retrofit over an existing concrete substrate and can be installed in as little as 10 minutes.

All of our truncated dome tactile surfaces are in full compliance with the American Disabilities Act Accessibility Guidelines (ADAAG), Public Right-of-Way (PROW) and California Title 24 Requirements. ADA Solutions Inc., products are approved for use by all major municipalities, DPW’s and state DOT's.


DOME GEOMETRY - In accordance with ADA Regulations for Detectable Warning on Curb Ramps: Raised truncated domes with a diameter of nominal 0.9in., a height of nominal 0.2in., and a center-to-center spacing of nominal 1.67in. minimum and 2.35in. maximum.

PANEL DIMENSIONS-Tactile Panels are available in 24in.x36in., 24in.x48in., 24in.x60in., 36in.x48in. and 36in.x60in. sizes and measure 3/16in. thick. Panels can be custom cut to fit field conditions. All four edges of each panel have a ½in. beveled edge. Each panel has 12 to 24 pre-formed fastener locations based upon panel size.

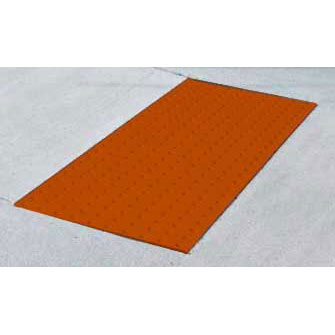

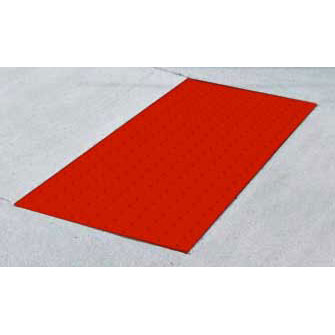

MATERIAL - A durable exterior grade homogenous glass, carbon, and fiberglass reinforced composite material which is colorfast and UV stable. The color of the Tactile Unit is uniform throughout and does not rely on any type of paint coating to achieve color stability. Standard colors include: Federal Yellow, Seattle Yellow, White, Brick Red, Clay Red, Safety Red, Blue, Dark Gray and Black. For superior wheelchair, walker and shopping cart mobility, truncated domes have a center-to-center (horizontally and vertically) spacing of 2.35 inches.
