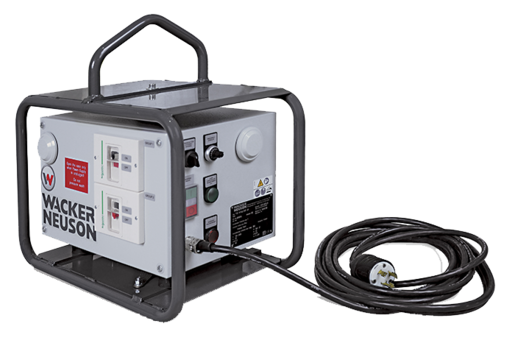

Wacker FUE 6/042/200 Frequency Converter for the AR26
List Price
|
$8,230.00
|
Your Price |
$6,607.18 |
|
You Save
$1,622.82 |
- Sturdy tubular frame to protect the equipment and to use as a carrying device, additional central lifting point made of a sturdy strap
- Outfitted with isolating transformer and pulse peak-sensitive protective ground fault interrupter (GFI or GFCI)
- Maintenance-free
- Operating indicator
- Dust and splash-water protected (IP 44)
- 3 connection plug receptacles
ELECTRICAL SYSTEM |
Imperial |
Metric |
Receptacle Type |
CEE 3P 32A 4H 50V 100-200Hz |
CEE 3P 32A 4H 50V 100-200Hz |
RESERVE |
yes |
yes |
Number of Sockets |
4 |
4 |
Operating indicator |
yes |
yes |
Adjusting frequency |
yes |
yes |
Kind of plug |
CEE 3P 32A 4H 50V 100-200Hz |
CEE 3P 32A 4H 50V 100-200Hz |
Operating elements |
32,8 Foot |
10,00 m |
Length Cable |
32,8 Foot |
10,00 m |
Breaker Switch On/Off |
yes |
yes |
ENVIRONMENT DATA |
Imperial |
Metric |
Operating temperature range |
14 - 104 °F |
-10 - 40 °C |
Sound level LpA (Standard) |
DIN EN ISO 11201 |
DIN EN ISO 11201 |
Protection class |
I / Protective earthing |
I / Protective earthing |
Storage temperature range |
-4 - 122 °F |
-20 - 50 °C |
Sound level LpA |
70,0 dB(A) |
70,0 dB(A) |
Degree of protection |
IP44 |
IP44 |
Measuring method LpA |
- |
- |
MECHANICAL DETAILS |
Imperial |
Metric |
Length |
20,5 " |
520 mm |
Height |
19,4 " |
494 mm |
Width |
12,2 " |
310 mm |
Weight |
65,04 lb |
29,50 kg |
ELECTRICAL - OUTPUT DETAILS |
Imperial |
Metric |
Nominal current |
22,00 A |
22,00 A |
Output Nominal power [S] |
3,80 kVA |
3,80 kVA |
Nominal voltage |
230 - 240 V |
230 - 240 V |
Output Phase |
3 ~ |
3 ~ |
Phase |
1 ~ |
1 ~ |
Output voltage |
42,0 V |
42,0 V |
Nominal power [S] |
5,20 kVA |
5,20 kVA |
Nominal frequency |
50 - 60 Hz |
50 - 60 Hz |
Output frequency |
0 - 200 Hz |
0 - 200 Hz |
Output current |
52,0 A |
52,0 A |
